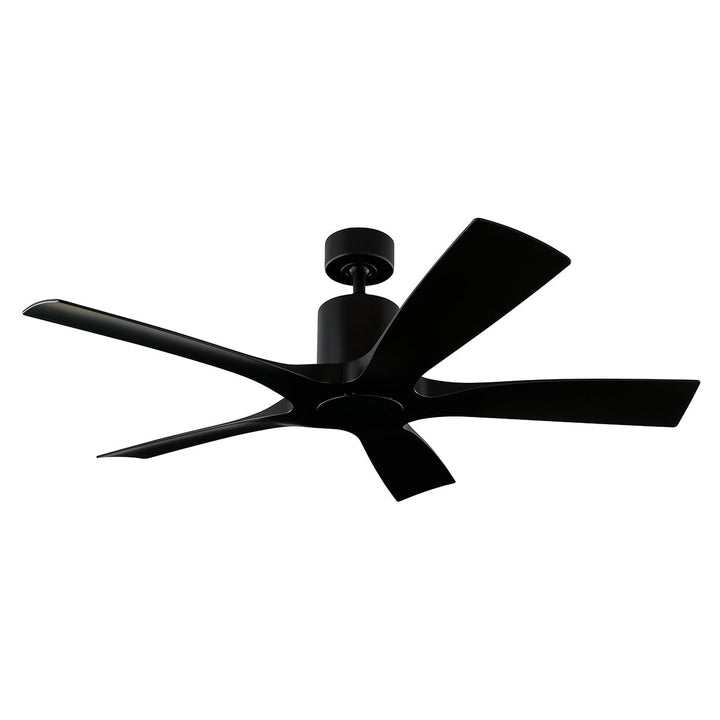

Name: Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote
Brand: Modern Forms Fans
SKU: FR-W1811-5-MB
Price: 749.95 USD
Availability: InStock

Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote

$749.95

Shipping calculated at checkout.

Free shipping for most orders over $99

In stock, ready to ship (195 available)
Inventory on the way

All Options are Required.

Optional Bluetooth Wall Control*?

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Graphite 2700K ($174.95)
Graphite 3000K ($119.95)
Graphite 3500K ($174.95)
No Thanks

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Graphite 2700K ($174.95)
Graphite 3000K ($119.95)
Graphite 3500K ($174.95)
No Thanks

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Matte Black 2700K ($174.95)
Matte Black 3000K ($119.95)
Matt Black 3500K ($174.95)
No Thanks

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Matte Black 2700K ($174.95)
Matte Black 3000K ($119.95)
Matt Black 3500K ($174.95)
No Thanks

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Graphite 2700K ($174.95)
Graphite 3000K ($119.95)
Graphite 3500K ($174.95)
No Thanks

Additional Downrod Lengths*

Optional CCT Light Kit*?

- Select One -

Graphite 2700K ($174.95)
Graphite 3000K ($119.95)
Graphite 3500K ($174.95)
No Thanks

Pairs well with

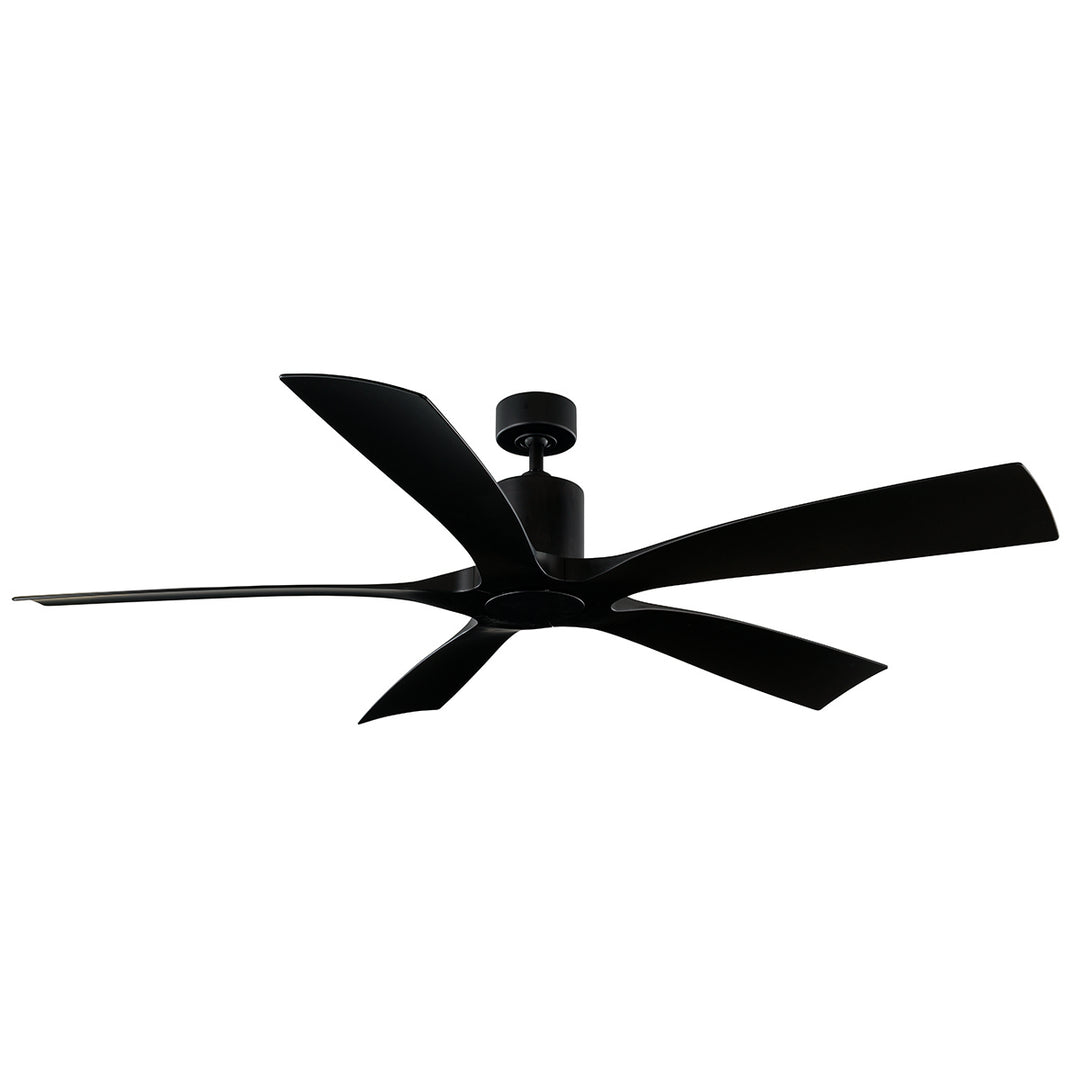

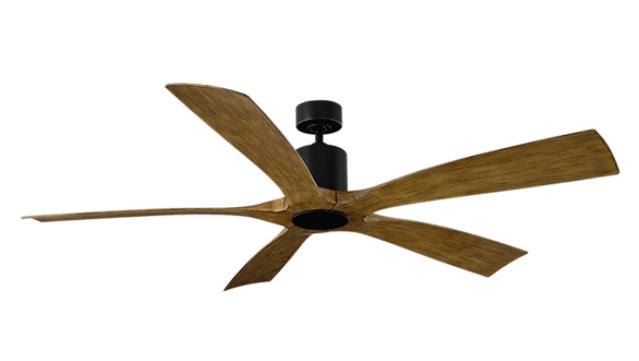

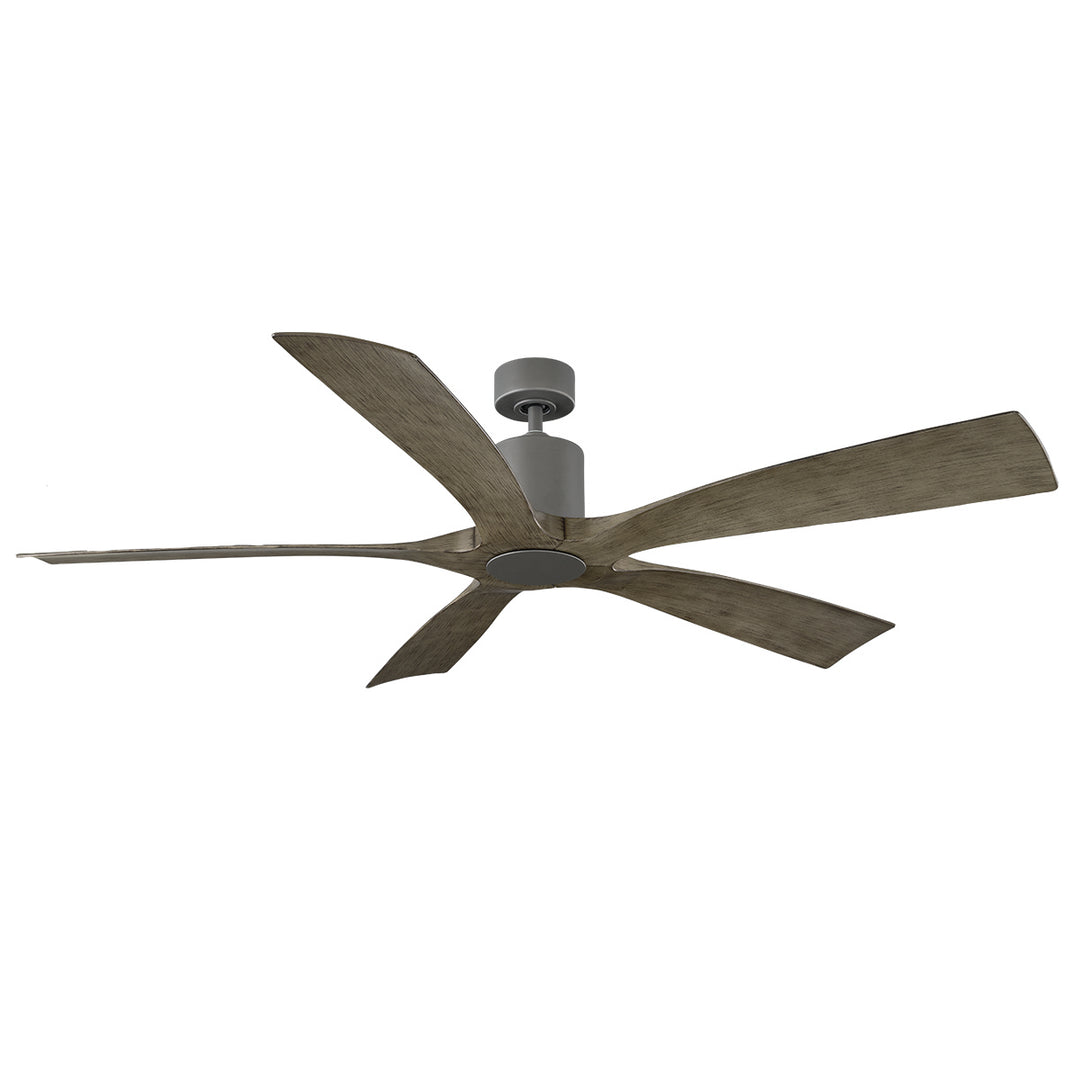

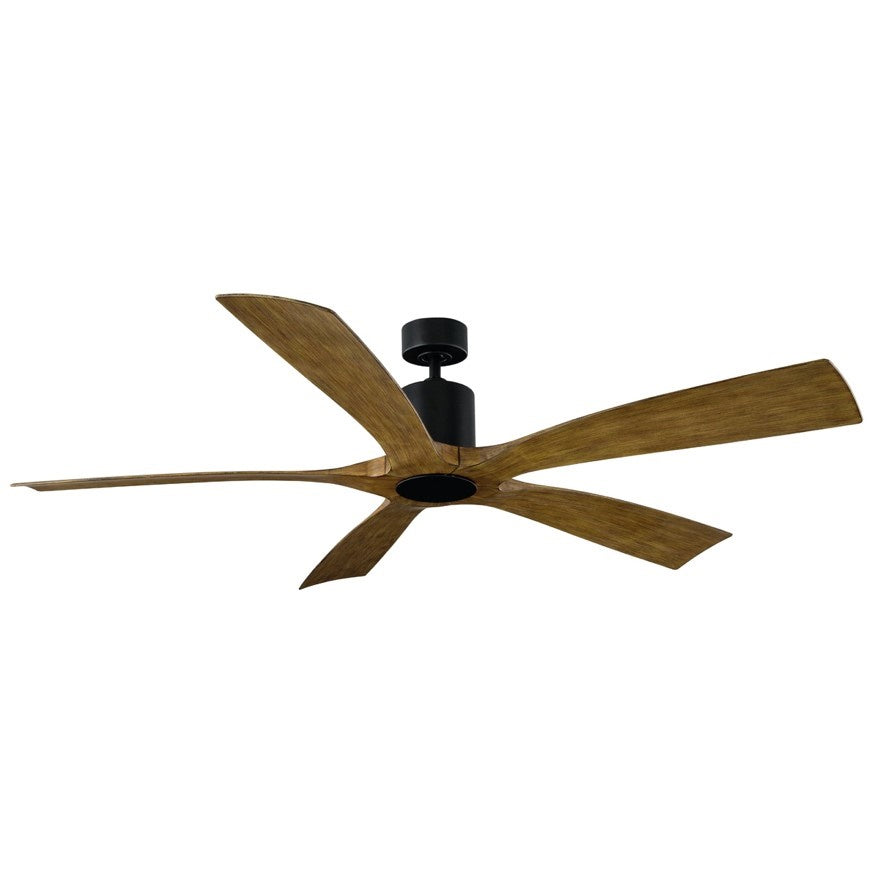

Modern Forms Fans FR-W1811-5 & FR-W1811-70

Inspired by the golden age of flying, this smart fan takes technology to the next level. Pair it with the Bluetooth remote control or use the Modern Forms app to save on energy costs, group fans to control together, or intuitively create schedules that respond to your behavior. Two simulated wood finishes contrast with the matte black or graphite housings for an understated look in interior or exterior spaces. Available optional LED luminaire sold separately.

Width: 54.00" & 70.00"
Height: 10.53"
Weight: 17.46 lb
Airflow: 8418 CFM
Blade Finish: Weathered Gray
Integrated Light: Adaptable
Control: Remote included
Downrod: 4.5" included
Fan Speeds: 6
Wet Rated

Most orders over $99 ship free anywhere in the US!

Shipping will be calculated at checkout.

Some items can be picked up at your local Fan Diego store - details available on the checkout page.

[{"id":48329107833130,"title":"Graphite\/Matte Black \/ 54\"","option1":"Graphite\/Matte Black","option2":"54\"","option3":null,"sku":"FR-W1811-5-MB","requires_shipping":true,"taxable":true,"featured_image":{"id":46607189049642,"product_id":8721786372394,"position":1,"created_at":"2024-09-21T05:32:53-07:00","updated_at":"2024-09-21T05:32:53-07:00","alt":null,"width":1200,"height":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/modern-forms-fan-aviator-5-smart-outdoor-dc-ceiling-fan-with-19_5w-cct-led-and-remote.jpg?v=1726921973","variant_ids":[48329107833130]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Graphite\/Matte Black \/ 54\"","public_title":"Graphite\/Matte Black \/ 54\"","options":["Graphite\/Matte Black","54\""],"price":74995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"790576810683","featured_media":{"alt":null,"id":38762240901418,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/modern-forms-fan-aviator-5-smart-outdoor-dc-ceiling-fan-with-19_5w-cct-led-and-remote.jpg?v=1726921973"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48329108554026,"title":"Graphite\/Matte Black \/ 70\"","option1":"Graphite\/Matte Black","option2":"70\"","option3":null,"sku":"FR-W1811-70-MB","requires_shipping":true,"taxable":true,"featured_image":{"id":44789516697898,"product_id":8721786372394,"position":2,"created_at":"2024-05-04T02:46:00-07:00","updated_at":"2024-05-04T02:46:00-07:00","alt":null,"width":1200,"height":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-MB.jpg?v=1714815960","variant_ids":[48329108554026]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Graphite\/Matte Black \/ 70\"","public_title":"Graphite\/Matte Black \/ 70\"","options":["Graphite\/Matte Black","70\""],"price":99995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37286166462762,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-MB.jpg?v=1714815960"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48329107865898,"title":"Matte Black\/Distressed Koa \/ 54\"","option1":"Matte Black\/Distressed Koa","option2":"54\"","option3":null,"sku":"FR-W1811-5-MB\/DK","requires_shipping":true,"taxable":true,"featured_image":{"id":44789518369066,"product_id":8721786372394,"position":3,"created_at":"2024-05-04T02:46:25-07:00","updated_at":"2024-05-04T02:46:25-07:00","alt":null,"width":880,"height":880,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-5-MBDK.jpg?v=1714815985","variant_ids":[48329107865898]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Matte Black\/Distressed Koa \/ 54\"","public_title":"Matte Black\/Distressed Koa \/ 54\"","options":["Matte Black\/Distressed Koa","54\""],"price":74995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37286168133930,"position":3,"preview_image":{"aspect_ratio":1.0,"height":880,"width":880,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-5-MBDK.jpg?v=1714815985"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48329108586794,"title":"Matte Black\/Distressed Koa \/ 70\"","option1":"Matte Black\/Distressed Koa","option2":"70\"","option3":null,"sku":"FR-W1811-70-MB\/DK","requires_shipping":true,"taxable":true,"featured_image":{"id":44789521744170,"product_id":8721786372394,"position":4,"created_at":"2024-05-04T02:47:14-07:00","updated_at":"2024-05-04T02:47:14-07:00","alt":null,"width":639,"height":361,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-MBDK.jpg?v=1714816034","variant_ids":[48329108586794]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Matte Black\/Distressed Koa \/ 70\"","public_title":"Matte Black\/Distressed Koa \/ 70\"","options":["Matte Black\/Distressed Koa","70\""],"price":99995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37286171541802,"position":4,"preview_image":{"aspect_ratio":1.77,"height":361,"width":639,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-MBDK.jpg?v=1714816034"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48329107898666,"title":"Graphite\/Weathered Grey \/ 54\"","option1":"Graphite\/Weathered Grey","option2":"54\"","option3":null,"sku":"FR-W1811-5-GH\/WG","requires_shipping":true,"taxable":true,"featured_image":{"id":44789524037930,"product_id":8721786372394,"position":5,"created_at":"2024-05-04T02:47:47-07:00","updated_at":"2024-05-04T02:47:47-07:00","alt":null,"width":880,"height":880,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-5-GHWG.jpg?v=1714816067","variant_ids":[48329107898666]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Graphite\/Weathered Grey \/ 54\"","public_title":"Graphite\/Weathered Grey \/ 54\"","options":["Graphite\/Weathered Grey","54\""],"price":74995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37286173835562,"position":5,"preview_image":{"aspect_ratio":1.0,"height":880,"width":880,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-5-GHWG.jpg?v=1714816067"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48329108619562,"title":"Graphite\/Weathered Grey \/ 70\"","option1":"Graphite\/Weathered Grey","option2":"70\"","option3":null,"sku":"FR-W1811-70-GH\/WG","requires_shipping":true,"taxable":true,"featured_image":{"id":44789527216426,"product_id":8721786372394,"position":6,"created_at":"2024-05-04T02:48:38-07:00","updated_at":"2024-05-04T02:48:38-07:00","alt":null,"width":1200,"height":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-GHWG.jpg?v=1714816118","variant_ids":[48329108619562]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Graphite\/Weathered Grey \/ 70\"","public_title":"Graphite\/Weathered Grey \/ 70\"","options":["Graphite\/Weathered Grey","70\""],"price":99995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37286177112362,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/FR-W1811-70-GHWG.jpg?v=1714816118"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":48329107833130,"title":"Graphite\/Matte Black \/ 54\"","option1":"Graphite\/Matte Black","option2":"54\"","option3":null,"sku":"FR-W1811-5-MB","requires_shipping":true,"taxable":true,"featured_image":{"id":46607189049642,"product_id":8721786372394,"position":1,"created_at":"2024-09-21T05:32:53-07:00","updated_at":"2024-09-21T05:32:53-07:00","alt":null,"width":1200,"height":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/modern-forms-fan-aviator-5-smart-outdoor-dc-ceiling-fan-with-19_5w-cct-led-and-remote.jpg?v=1726921973","variant_ids":[48329107833130]},"available":true,"name":"Modern Forms Fan Aviator 5 Smart Outdoor DC Ceiling Fan with 19.5W CCT LED and Remote - Graphite\/Matte Black \/ 54\"","public_title":"Graphite\/Matte Black \/ 54\"","options":["Graphite\/Matte Black","54\""],"price":74995,"weight":7920,"compare_at_price":0,"inventory_management":"shopify","barcode":"790576810683","featured_media":{"alt":null,"id":38762240901418,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/fandiego.com\/cdn\/shop\/files\/modern-forms-fan-aviator-5-smart-outdoor-dc-ceiling-fan-with-19_5w-cct-led-and-remote.jpg?v=1726921973"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Other Ceiling Fan & Lighting Collections

Palm trees with well lights lighting up the landscape.

Landscape Well Lights

A high CFM ceiling fan in the living space of a FanDiego customer.

High CFM Ceiling Fans

An exterior patio fan on the side of a beach house.

Exterior Patio Fans

A ceiling fan that was made in the United States of America.

USA Made Ceiling Fans

Recent Blog Posts

View all

A light that replaced a ceiling fan in a living room.

Sep 20, 2025

Transform Your Space by Replacing a Ceiling Fan with a Light Fixture

Sep 09, 2025

Why Is Your Ceiling Fan Making Noise? Causes, Fixes, and When to Call a Pro

Aug 21, 2025

10 Key Features of Ceiling Fans That Move the Most Air

Category	Features
ADA	No
Airflow Efficiency	238
Base Category	Fans
Base Style	Transitional
Base Type	Wet Location
Blade Finish	Weathered Gray
Blade Pitch	13
Blade Qty	3
Blade Span	54"
Blade Type	ABS
Bulbs 2 Included	No
Bulbs Included	No
Canopy	7"
Carton 1 Height	12.09
Carton 1 Length	26.77
Carton 1 Weight	22.58
Carton 1 Width	18.03
CFM Range	8000-9000
Country of Origin	Taiwan
Dark Sky	No
Dimmable	No
Dimmable 2	No
Effective Date	2023-09-10 00:00:00 -0700
Energy Efficient	No
Energy Star	Yes
Fan Airflow	8418
Fan Control	Remote
Fan Downrod	4.5"
Fan Mounting System	Downrod
Fan RPM	161
Fan Speeds	6
Finish	Bronze / Dark
Gas	No
Height	10.53
Height Range	13" - 18"
LED	No
Light Kit	Adaptable
Manufacturer Finish	Graphite/Weathered Gray
Manufacturer part number	FR-W1811-5-GH/WG
Manufacturer Warranty	5 years LED module
Material	Aluminum Body With ABS Blades
materials	["Aluminum Body With ABS Blades"]
Motor Size	125 X 20
Multiplier	2
Price Range	$500-$750
Product Category	Fans
product options	["gid://shopify/Metaobject/35699261738"]
Safety Listing	UL, cUL
Safety Rating	Wet
Style 1	Transitional
Title 20	No
Title 24	Yes
Type	Wet Location
Voltage	120 Volt
Weight lbs	17.46
Width/Diameter	54
Width Range	49" - 58"
Wire	80"
